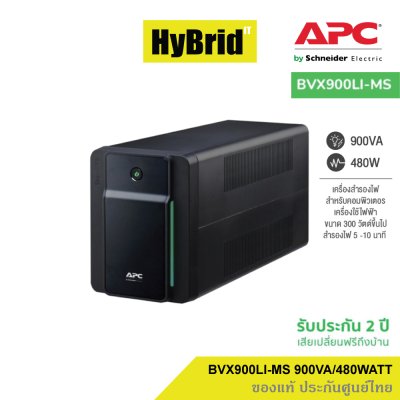

APC EASY UPS BVX900LI-MS (900VA/480WATT) ประกันศุนย์ไทย

Technical Specifications



Output

Max Configurable Power (Watts) : 480 Watts / 900VA

Output Frequency (sync to mains) : 50/60 Hz +/- 1 Hz Sync to mains

Topology : Line interactive

Waveform type : Stepped approximation to a sinewave

Transfer Time : 6 ms typical : 10 ms maximum



Input

Input frequency : 50/60 Hz +/- 5 Hz Auto-sensing

Input voltage range for main operations : 140 - 300 (230 V) ACV

Number of Power Cords : 1

Input Power Factor at Full Load : 0.53



Batteries & Runtime

Battery type : Lead-acid battery

Typical recharge time : 8hour(s)

Nominal Battery Voltage : 12 V

Expected Battery Life (years) : 1 - 2

Battery Volt-Amp-Hour Capacity : 108



Communications & Management

Control panel : LED Status display with on line : on battery

Audible Alarm : Alarm when on battery : distinctive low battery alarm



Surge Protection and Filtering

Surge energy rating : 273Joules



Environmental

Operating Temperature : 0 - 40 °C

Operating Relative Humidity : 0 - 95 (Non-condensing) %

Operating Elevation : 0 - 3000meters

Storage Temperature : -15 - 40 °C

Storage Relative Humidity : 0 - 95 (Non-condensing) %

Storage Elevation : 0 - 3000meters

Audible noise at 1 meter from surface of unit : 40.0dBA

Protection Class : IP20



Warranty : 2 Years
